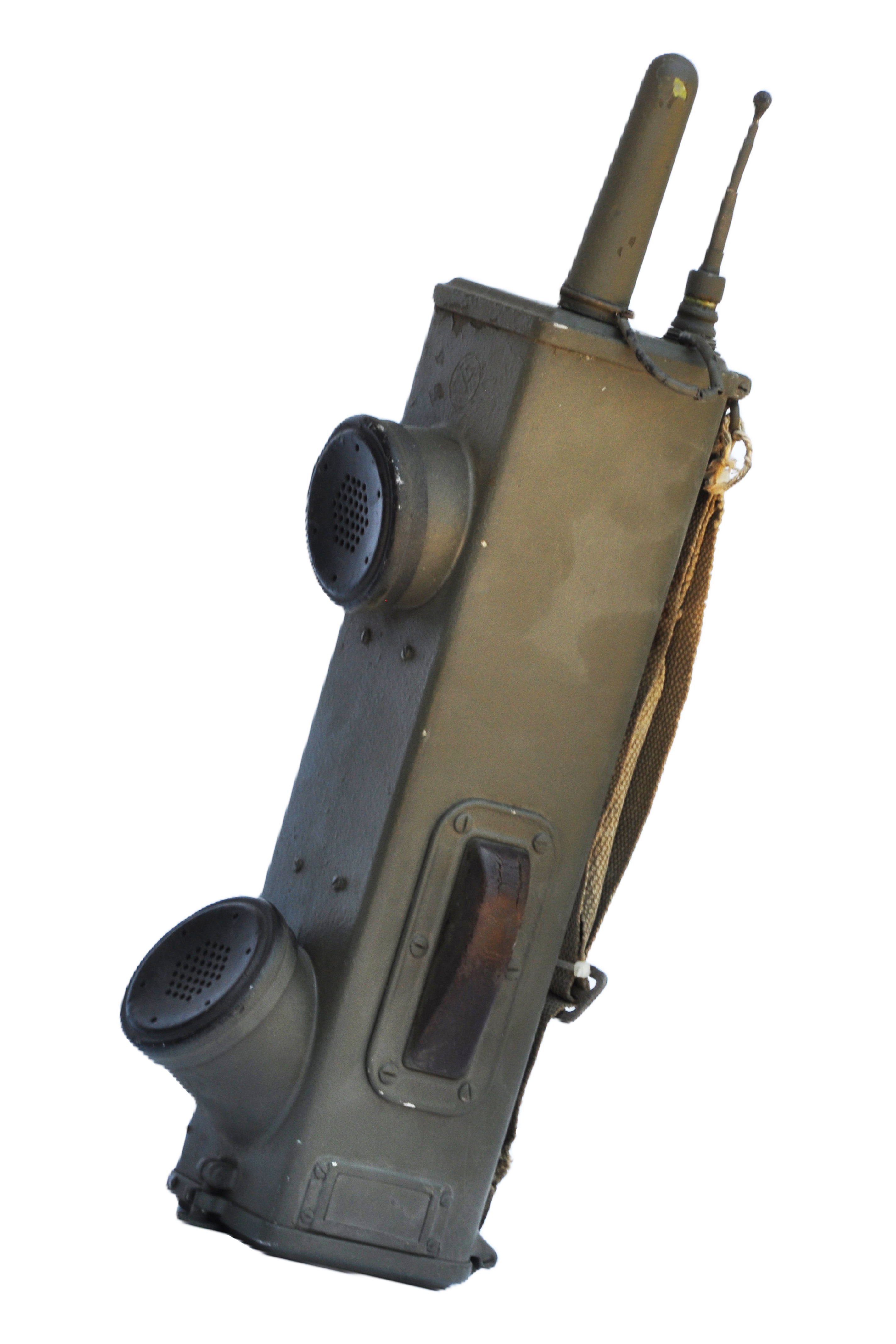

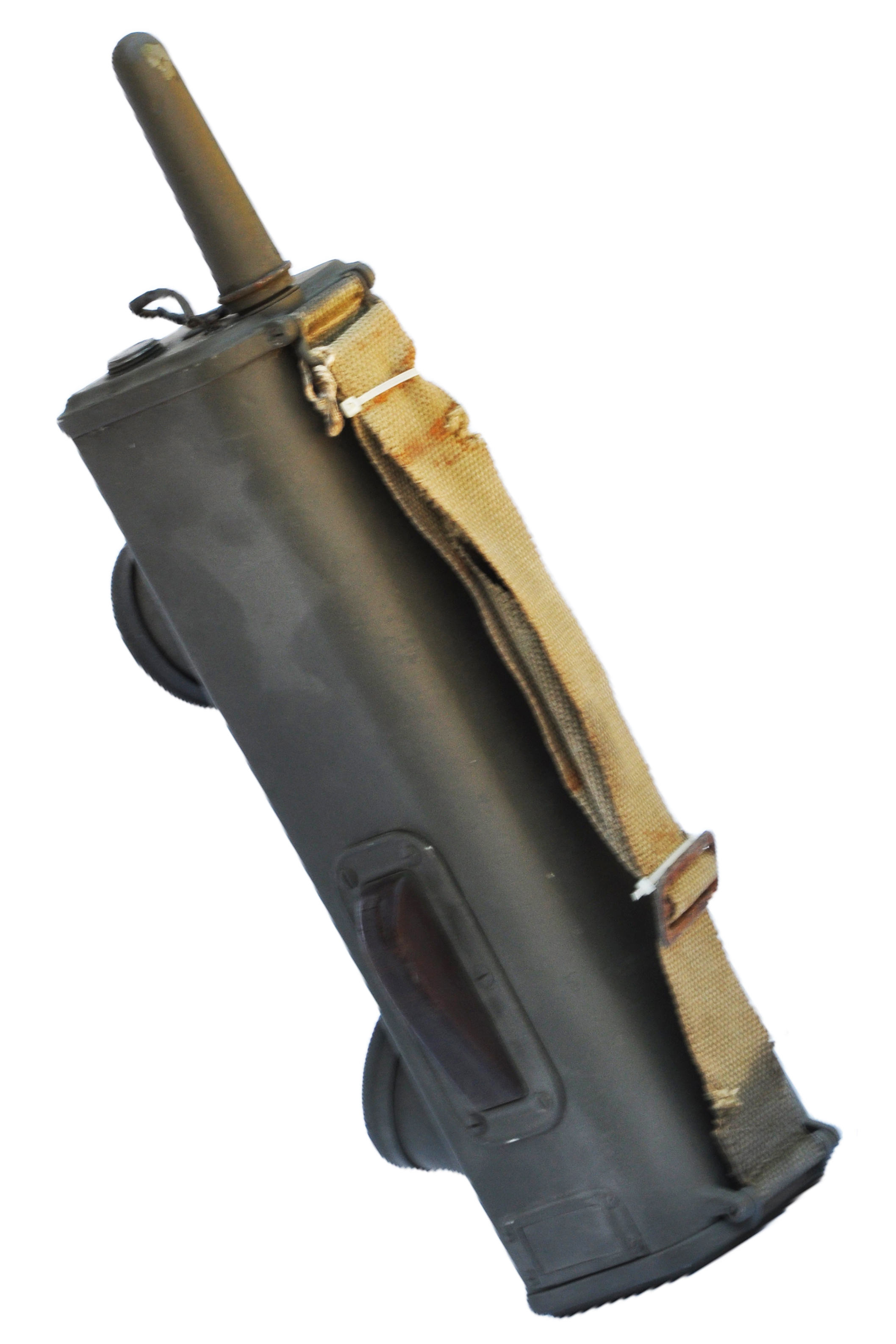

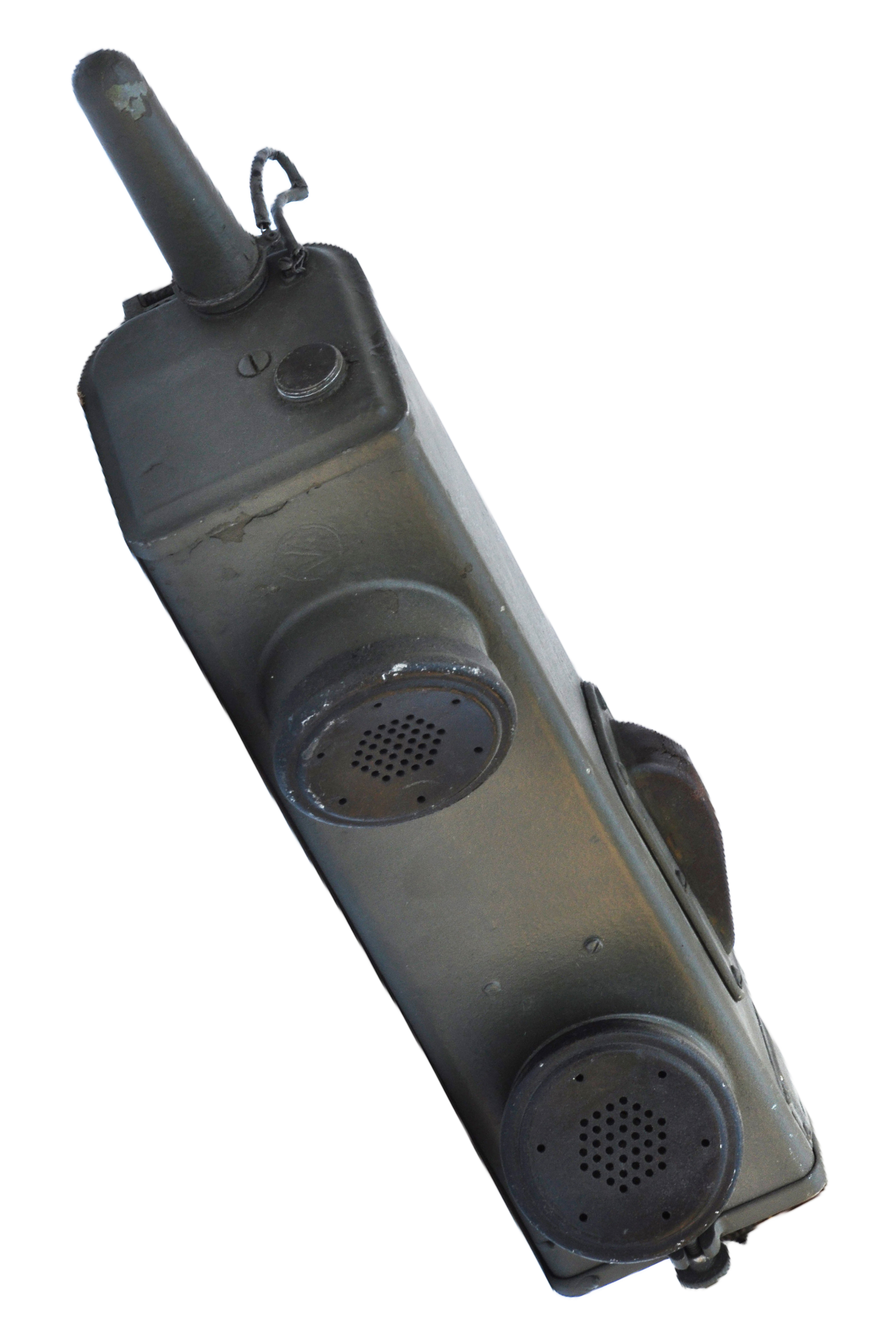

Hand-held transmitter-receiver.
Used by the US military during WW2, designated SCR-536. Nicknamed ‘Handie-talkie’.
Used by the IDF in the War of Independence (1948) and the Sinai Campaign (1956), at platoon level, with a range of ~1,500 meters.
Frequency range 3 to 6.5 MHz, single crystal controlled channel, AM (Amplitude Modulation), 0.2 watts output power.

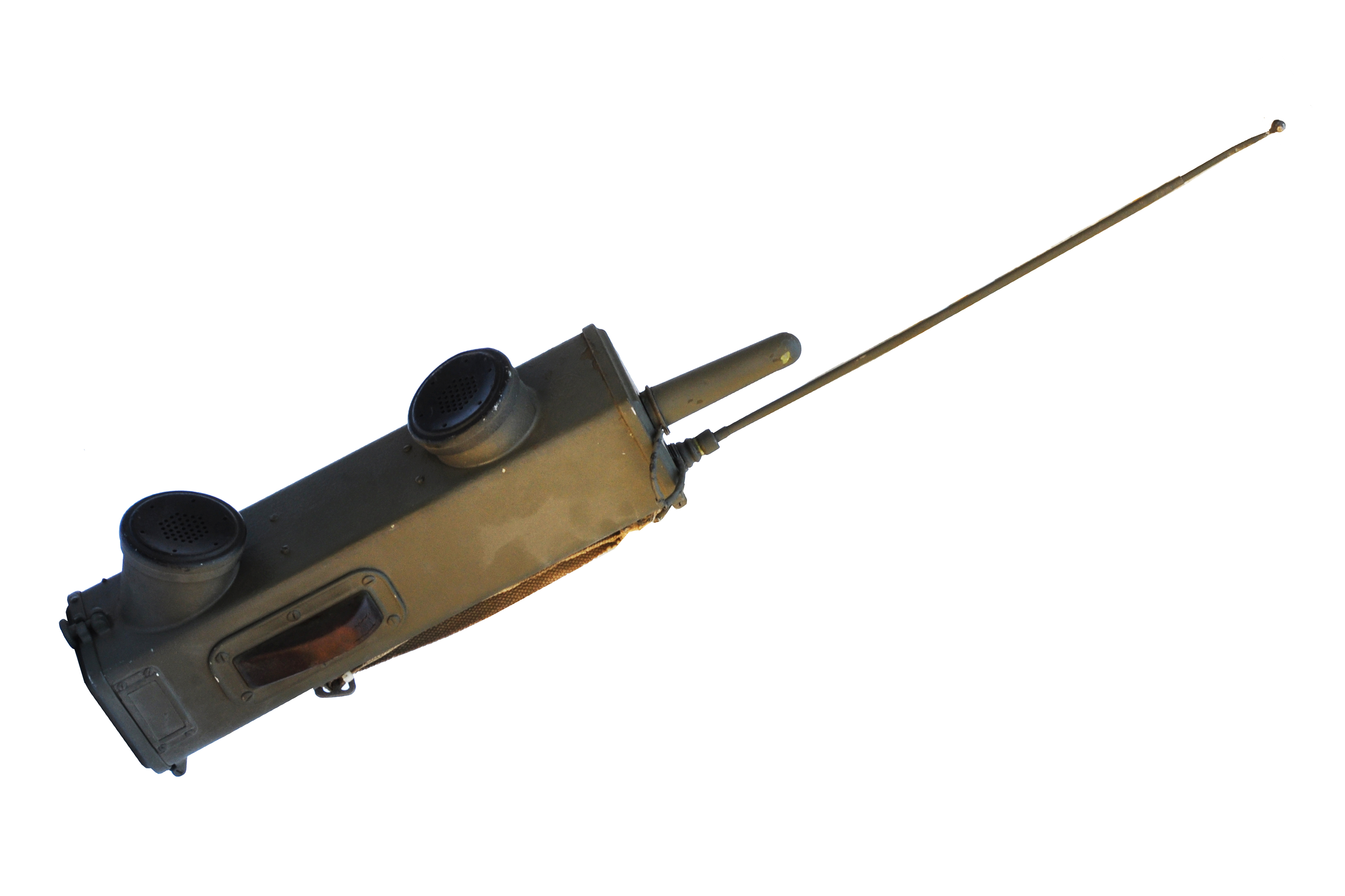

No On/Off switch, pulling the telescopic rod antenna operates the transceiver.

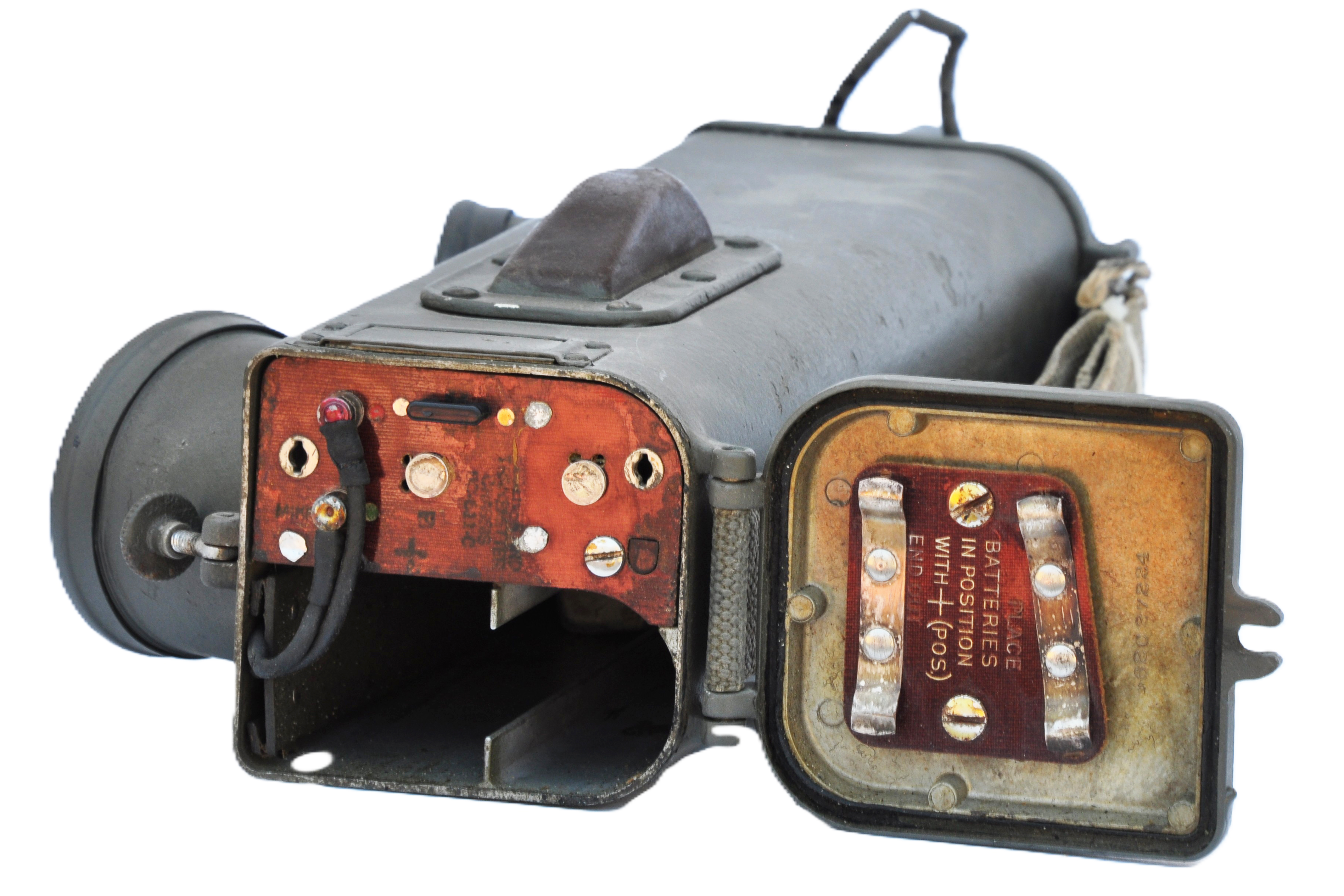

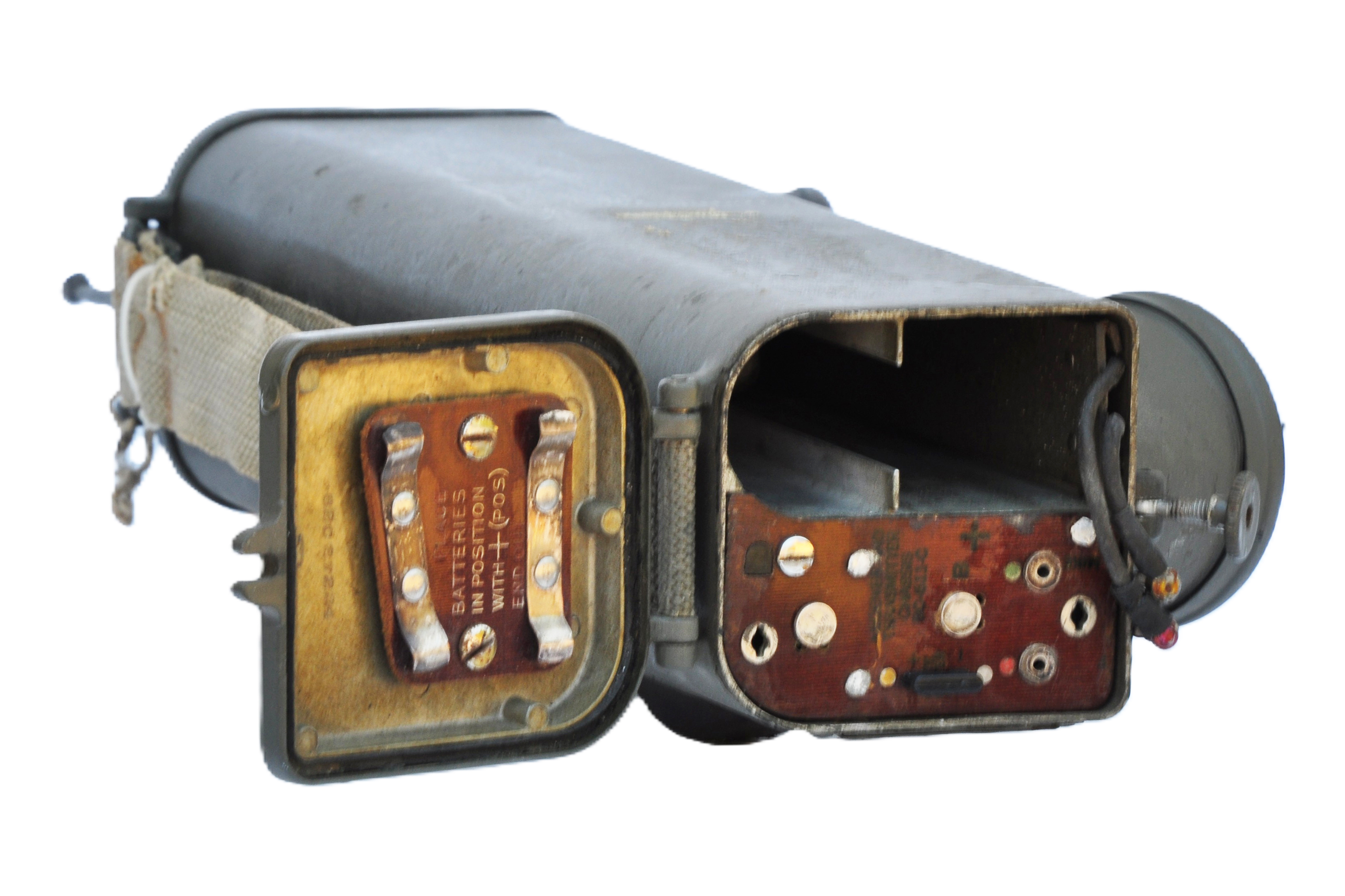

BU-37 & BU-38 battery.
Vacuum tube technology.
Weight: 3.5 Kg.
