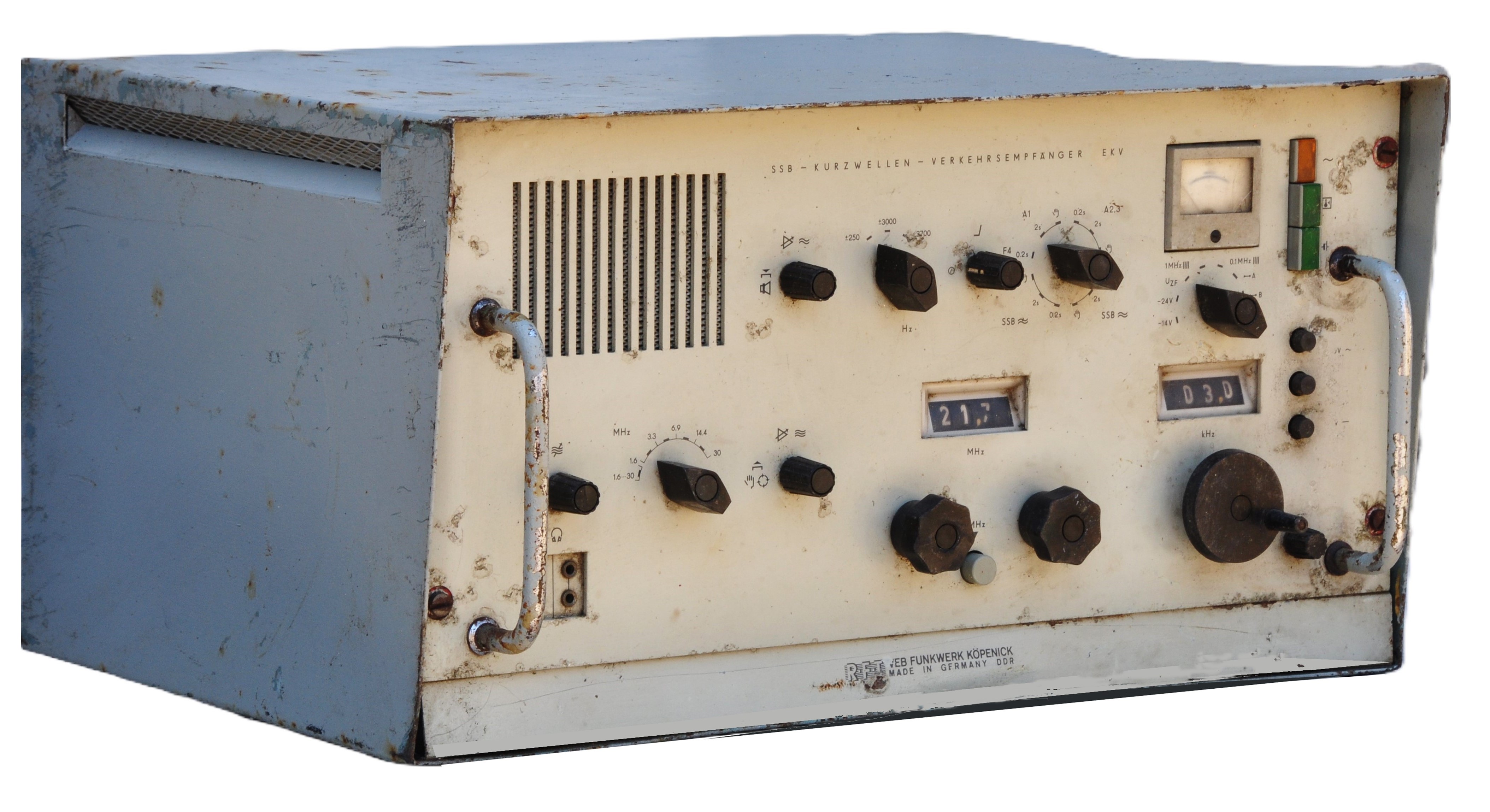

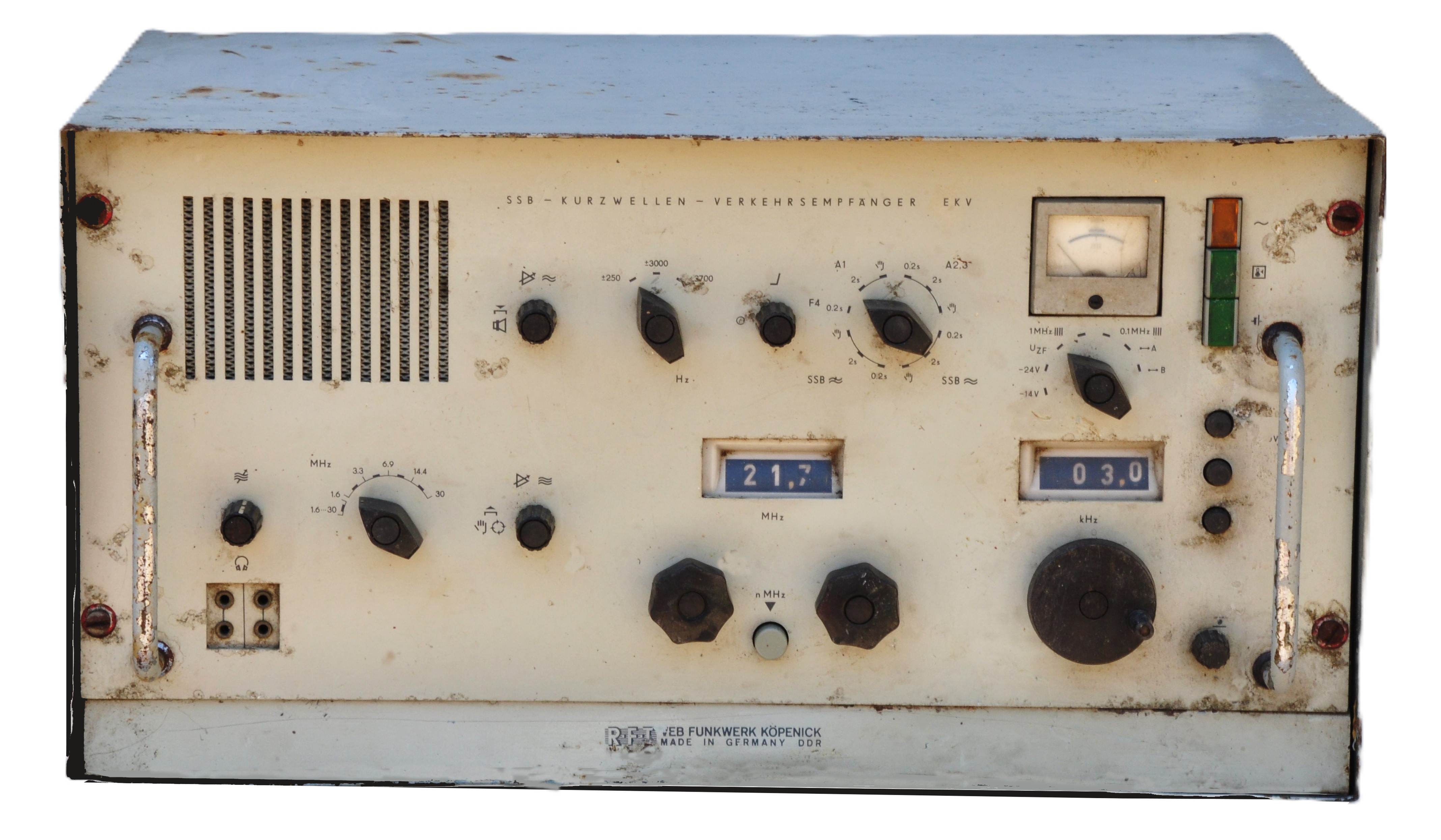

HF radio receiver, for CW (Morse), SSB (Single Side Band) and AM (Amplitude Modulation), in the frequency range of 1.6 to 30 MHz.
Used by the intelligence bodies of the Soviet military, the Warsaw Pact countries, and the Arab countries, from early 1970s until 1990s.
Frequency display to 100 Hz. Selectable bandwidth: ±250, ±3,000, ±3,700, 2,700 and 6,000 Hz.
Power supplies for 24 Volts DC, 110 or 220 Volts AC.
Weight: 52 Kg.
Transistors technology, super-heterodyne with intermediate frequencies of 37.8 to 39.3 MHz, 3.2 MHz and 200 kHz.
Manufactured by Kopenick, Deutsche Demokratische Republik.
